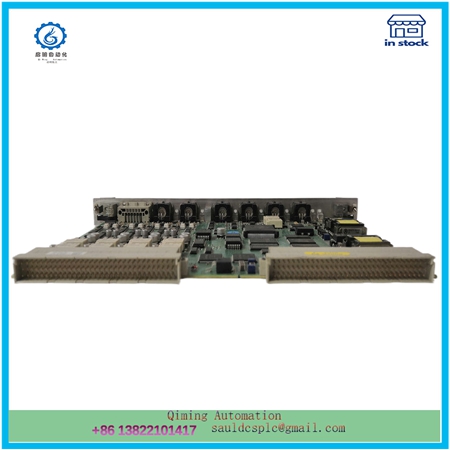

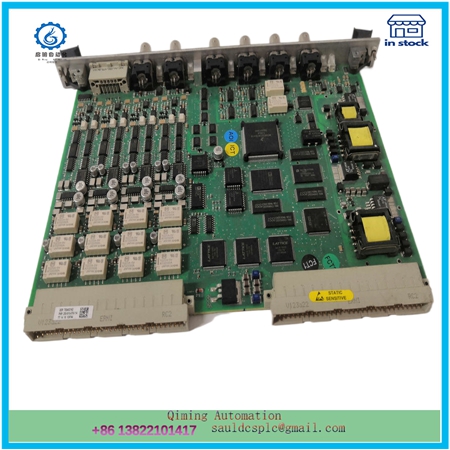

VIBRO Meter MPC4 200-510-076-114 module

Description

The VIBRO Meter MPC4 200-510-076-114 module is a key component of the VM600 series mechanical protection system (MPS) from the Vibro Meter vibration meter product line. The following is a detailed introduction to this module:

1、 Basic Overview
Product Name: VIBRO METAL MPC4 200-510-076-114 Module
Manufacturer: Vibro Meter
Series: VM600 series
Type: Mechanical Protection Card (MPC)
2、 Main functions and features
Vibration monitoring and analysis:
This module can simultaneously measure and monitor up to four dynamic signal inputs, which are fully programmable and can accept signals representing acceleration, velocity, and displacement (proximity).
Dynamic signal input range: DC 0+20V or 0-20V, AC ± 10V maximum.
Support multiple types of sensors, including acceleration sensors, velocity sensors, and displacement sensors, to meet the vibration measurement needs of different applications.
Digital processing:
Conduct in-depth signal analysis using digital filtering, integration/differentiation, rectification (RMS, mean, true peak, true peak to peak), step tracking (amplitude and phase), and measurement of sensor target gaps.
Protection function:

Provide configurable alarm and hazard set points, alarm time delay, hysteresis, and lockout to trigger alarms and activate protective measures when abnormal vibration levels are detected.
Speed input:
Supports two speed inputs for RPM measurement and vibration analysis relative to machine speed, with a speed input range of 0-20000 RPM.
Multi channel processing:
Allowing simultaneous processing of two channels from a single sensor expands monitoring functionality.
Communication interface:
Provide communication interfaces such as RS-232 and Ethernet for data exchange and remote monitoring with other devices.
Other features:
High sampling rate and resolution, capable of capturing rapidly changing vibration signals and ensuring data accuracy.
Supports all six IEC61131-3 programming languages, allowing users to configure, debug, and visualize operations in a complete and unified development environment.
3、 Application field
The VIBRO METER MPC4 200-510-076-114 module is widely used in various industrial fields that require vibration monitoring and protection, such as condition monitoring and fault diagnosis of rotating machinery (such as fans, pumps, compressors, etc.).

4、 Price and Purchase
The price of this module may vary due to factors such as suppliers and promotional activities. Generally speaking, its price range may range from a few thousand yuan to tens of thousands of yuan. It is recommended to directly contact the manufacturer or authorized dealer to obtain the latest quotations and purchase information.

5、 Summary
The VIBRO Meter MPC4 200-510-076-114 module is a powerful and stable mechanical protection card that provides comprehensive vibration monitoring, analysis, and protection functions. It is widely used in various industrial fields and is an important tool to ensure the safe operation of rotating machinery equipment.
