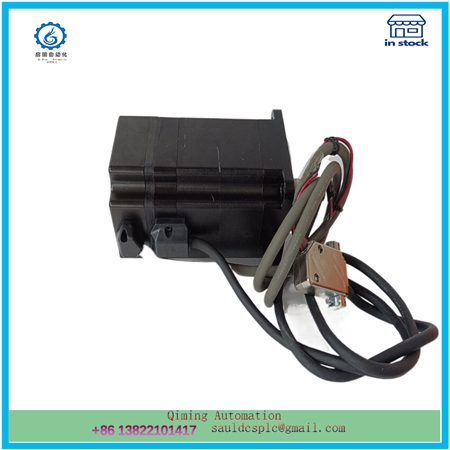

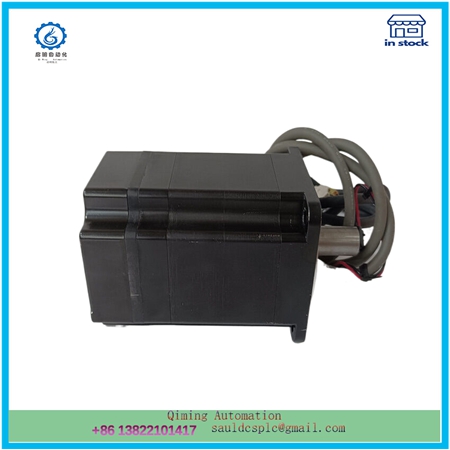

Y-3023-2-H00AA | RELIANCE | brushless servo motor

Description

RELIANCE Y-3023-2-H00AA motor is a brushless servo motor commonly used in industrial applications that require high precision, high responsiveness, and programmability. The following is a detailed analysis of the motor:

1、 Basic Information
Brand and Model: RELIANCE Y-3023-2-H00AA
Type: Brushless servo motor
Origin: United States (based on partial source information)
2、 Technical specifications
Size and weight:
Size: 140 x 80 x 80 millimeters (5.57 x 3.15 x 3.15 inches)
Weight: Approximately 3.9 kilograms (8.7 pounds), specific weight may vary slightly depending on product batch or configuration
Electrical characteristics:
Winding voltage: 230V AC
Rated speed: 4500 revolutions per minute
Optical encoder line counting: with a resolution of 2000 P/R and commutation signal, 5 volts DC voltage is used for the encoder power supply
Mechanical characteristics:

Maximum radial load: 35 kg
Number of poles: 8 poles
Shaft diameter: 16 millimeters (0.63 inches)
3、 Functional Features
Precise control: capable of precise control of position, velocity, and acceleration, with high-precision motion control capabilities.
Closed loop control: Adopting a closed-loop control system, real-time monitoring of motion status is achieved through feedback mechanisms (such as encoders) to achieve higher control accuracy.
High responsiveness: It has a fast response speed and can complete position or speed changes in a short period of time, suitable for applications that require quick action.
Programmable: It usually has the characteristic of programmability, which can adjust parameters and control logic programming according to specific applications.
Smooth motion: Achieve smooth motion, avoid vibration and vibration, suitable for applications that require high-quality motion.
High torque density: Provides a larger output torque in a relatively small size.
Position retention ability: It has good position retention ability and can maintain a low position error even when the motion is stopped.
4、 Application scenarios
RELIANCE Y-3023-2-H00AA motors are commonly used in the field of industrial automation, especially in robot servo drive systems that require precise control and fast response. It can perform precise positioning, speed control, and acceleration control tasks in various complex industrial environments.

5、 Precautions
When using RELIANCE Y-3023-2-H00AA motors, it is necessary to ensure that they are used in conjunction with appropriate servo drives to achieve optimal performance.
Motors should be used in standard industrial environments, avoiding exposure to high humidity or high ambient temperatures.
Regularly inspect and maintain the motor and its related components to ensure long-term stable operation.
In summary, RELIANCE Y-3023-2-H00AA motor is a high-performance brushless servo motor suitable for various industrial automation application scenarios.
