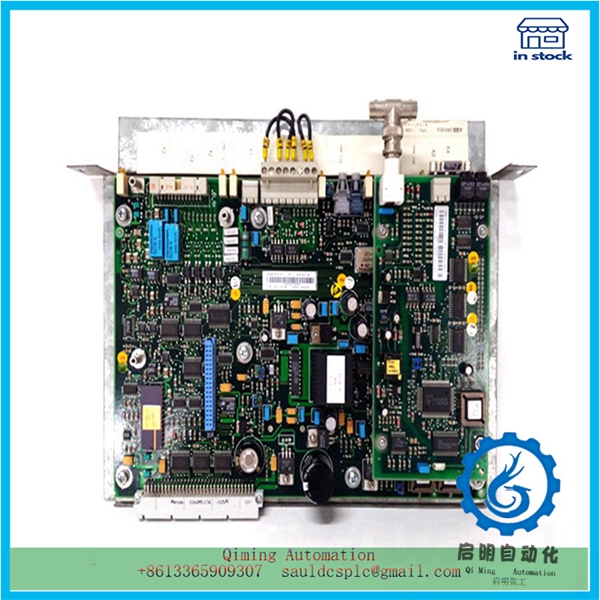

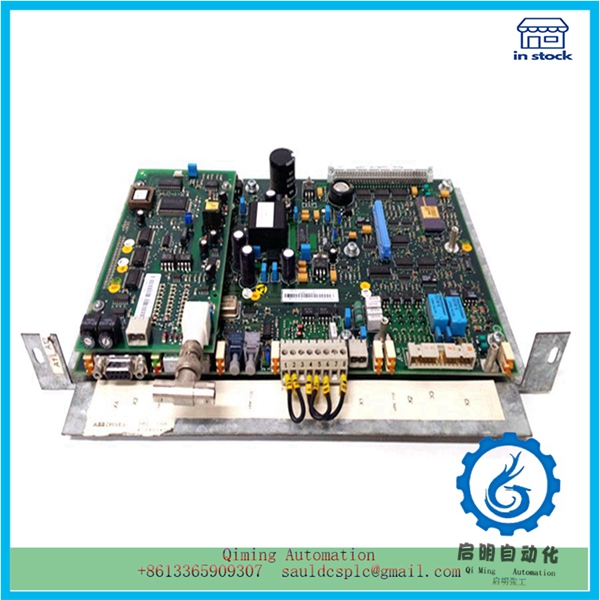

YPP110A 3ASD573001A1 | ABB | volume electronic transformers Controller

Description

YPP110A 3ASD573001A1 | ABB | volume electronic transformers Controller

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

Halogen lamps, also known as quartz lamps, are often made of quartz glass as reflective lampshades to create quartz spotlights. YPP110A  spotlights have the advantages of spotlight, high brightness, good color rendering, novel appearance, and long service life. They are commonly used for special lighting in dance halls, hotels, shopping malls, and other places. They can also be used for display windows in exhibition rooms and photography halls in the photography industry. At present, the use of quartz lamps in households is gradually increasing. Ordinary quartz spotlights use small 12V/50W halogen bulbs, paired with small volume electronic transformers, to improve efficiency and reduce volume and weight.
This electronic transformer adopts an engineering flame-retardant plastic shell, with a small and exquisite appearance. Main electrical parameters: power supply voltage AC220V+10%; Power frequency 50-60Hz; Output voltage AC12V; Output power 50W; Power factor 0. 99.

YPP110A  transformer is actually an isolated switching power supply, and the circuit principle is shown in the attached figure. It mainly consists of three parts: full bridge rectification and filtering, switch transformation, and small volume magnetic core isolation step-down transformer. Due to the use of NPN triple diffusion surface glass passivated planar transistors, the switching elements have the characteristics of high breakdown voltage, large current capacity, and short on/off time, ensuring the safe working area of the switching transistor. The circuit has high efficiency and reliability, and can work continuously for a long time. The isolation step-down transformer is also crucial for the machine, as the magnetic core parameters determine the YPP110A  power and the turn ratio determines the output voltage. This transformer uses EE25 magnetic core, with 120 turns for the primary winding and 12 turns for the secondary winding. The magnetic core does not have any gaps and is assembled and treated with special resin impregnation.

Mailbox：sauldcsplc@gmail.com |YPP110A   3ASD573001A1
www.abbgedcs.com | Qiming Industrial Control | Simon +86 13822101417

We may provide the information of this product:
Guidance manual PDF /Datasheet/ Weight/ Size/ Orignal country/ Prodcuct COO & COM & COC
Certificate of conformity / Certificate of Origin / Certificate of Origin /Operation method
Delivery time/ Provide a one-year warranty / Brand New Original Authentic
